Compression molding is a versatile and widely-used manufacturing process for producing high-strength, high-volume parts with complex shapes and superior dimensional stability. This guide provides a comprehensive overview of the compression molding process, including its benefits, materials, equipment, and detailed step-by-step procedures. Understanding these aspects can help manufacturers optimize their production processes and achieve high-quality results.
What is Compression Molding?
Compression molding involves placing a preheated polymer material into a heated mold cavity, where it is compressed and shaped under high pressure. The material conforms to the shape of the mold and cures or solidifies, resulting in a finished part. This process is suitable for both thermosetting plastics and thermoplastics, and it is commonly used in automotive, aerospace, electrical, and consumer goods industries.
Benefits of Compression Molding
Compression molding offers several advantages, including:
- High Strength and Durability: Parts produced through compression molding are often stronger and more durable than those made by other molding processes.
- Complex Shapes: The process allows for the creation of complex geometries and intricate details.
- Consistency and Precision: Compression molding provides excellent dimensional stability and consistency across high volumes of parts.
- Cost-Effectiveness: It is a cost-effective method for large production runs, as it minimizes material waste and reduces production time.
Materials Used in Compression Molding
Various materials can be used in compression molding, depending on the desired properties of the final product:
- Thermosetting Plastics: These materials, such as epoxy, phenolic, and melamine, undergo a chemical change during the molding process, resulting in a rigid and heat-resistant final product.
- Thermoplastics: Materials like polyethylene, polypropylene, and nylon are also used in compression molding. They can be melted and reshaped multiple times without undergoing a chemical change.
- Composites: Reinforced materials, such as fiberglass or carbon fiber composites, provide enhanced strength and durability for specialized applications.
Equipment Required for Compression Molding
The key equipment used in compression molding includes:
- Mold: The mold is typically made of steel or aluminum and consists of two halves (male and female) that define the shape of the part.
- Press: A hydraulic or mechanical press applies the necessary pressure to compress the material into the mold cavity.
- Preheating Equipment: Preheating ovens or infrared heaters are used to heat the material before it is placed in the mold.
- Ejection System: Once the part has cured, an ejection system helps remove it from the mold without causing damage.
Step-by-Step Compression Molding Process
1. Mold Preparation
The first step is to prepare the mold. This involves cleaning the mold cavity to remove any contaminants and applying a release agent to facilitate easy removal of the finished part. The mold is then heated to the required temperature for the specific material being used.
2. Material Preparation
The raw material, often in the form of pellets, sheets, or preformed shapes, is preheated to make it pliable. The preheating temperature and duration depend on the type of material and the desired properties of the final product.
3. Material Placement
Once preheated, the material is placed into the mold cavity. For precise placement, a measured amount of material is used to ensure consistent part quality and minimize waste.
4. Molding and Compression
The mold is closed, and the press applies the necessary pressure to compress the material. The pressure ensures that the material flows into all areas of the mold cavity, creating a uniform and detailed part. The mold remains closed under pressure for a specific duration to allow the material to cure or solidify.
5. Cooling and Curing
After the material has been adequately compressed and shaped, the mold is cooled to solidify the part. For thermosetting plastics, this cooling process also involves curing, where the material undergoes a chemical change to achieve its final properties. The cooling time varies depending on the material and part thickness.
6. Part Ejection
Once the part has cooled and cured, the mold is opened, and the ejection system removes the finished part. Care is taken to avoid damaging the part during ejection. The part is then inspected for quality and any necessary post-molding operations, such as trimming or machining, are performed.
Applications of Compression Molding
Compression molding is used in various industries for producing a wide range of products, including:
- Automotive Components: Brake pads, gaskets, and interior panels.
- Aerospace Parts: Structural components and insulation panels.
- Electrical Insulators: Switchgear components and circuit breakers.
- Consumer Goods: Kitchenware, appliance housings, and toys.
Optimizing Compression Molding Process
To achieve the best results in compression molding, consider the following optimization tips:
- Material Selection: Choose the right material based on the desired properties of the final product.
- Process Parameters: Optimize temperature, pressure, and curing time to ensure consistent part quality.
- Mold Design: Ensure the mold design allows for uniform material flow and easy part ejection.

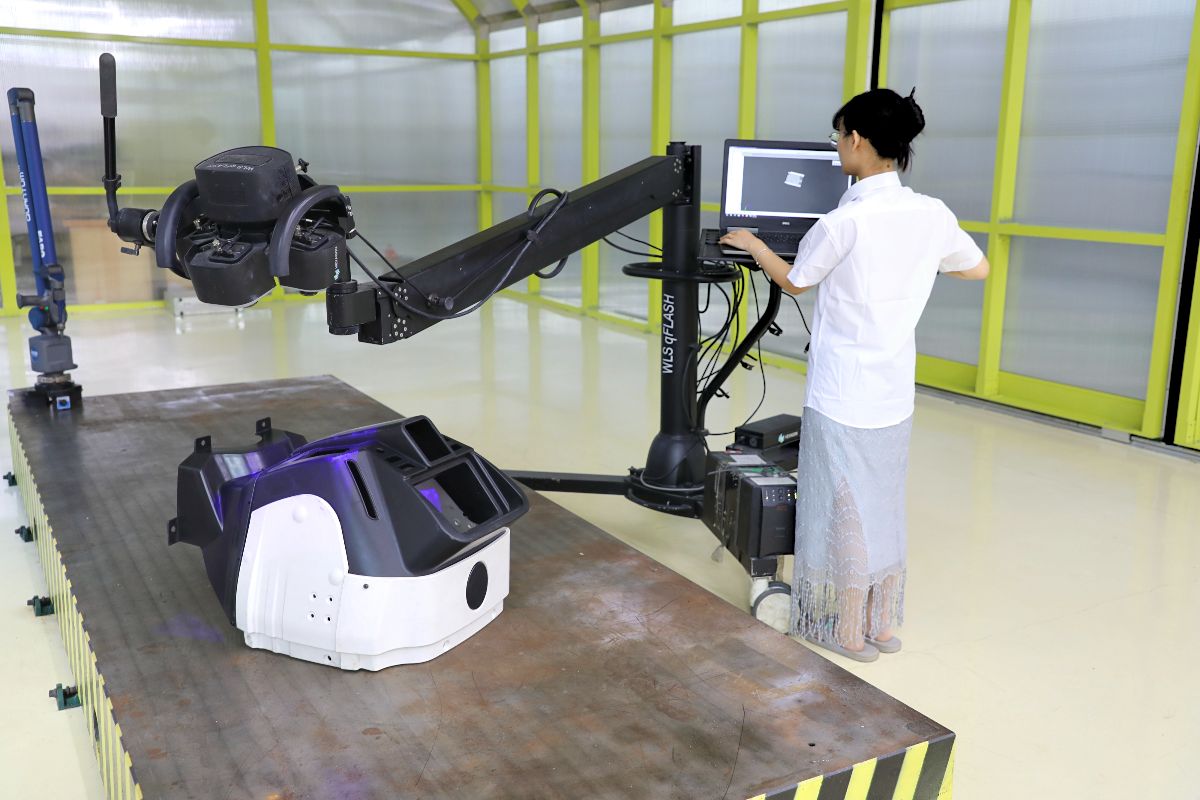

- Quality Control: Implement thorough inspection and testing procedures to maintain high standards.
Conclusion
Compression molding is a highly effective and versatile manufacturing process suitable for producing durable and complex parts across various industries. By understanding the materials, equipment, and step-by-step procedures involved, manufacturers can optimize their production processes and achieve high-quality results. Whether for automotive, aerospace, electrical, or consumer goods, compression molding offers a reliable solution for high-volume, high-precision part production.
